Product Description

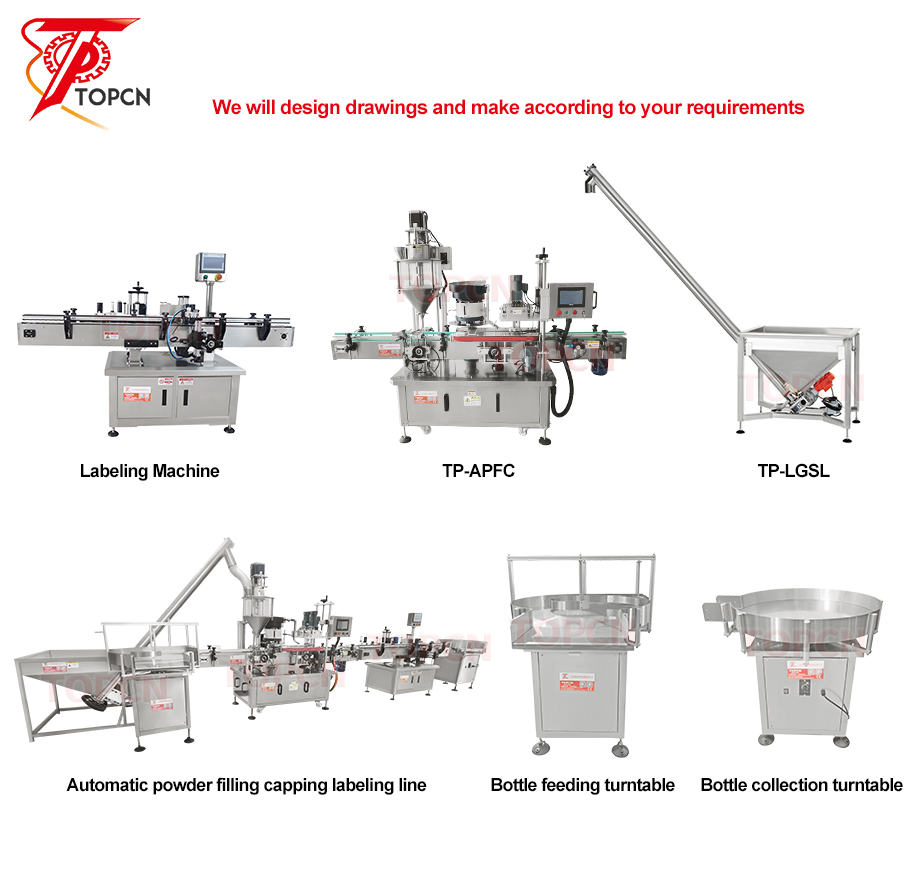

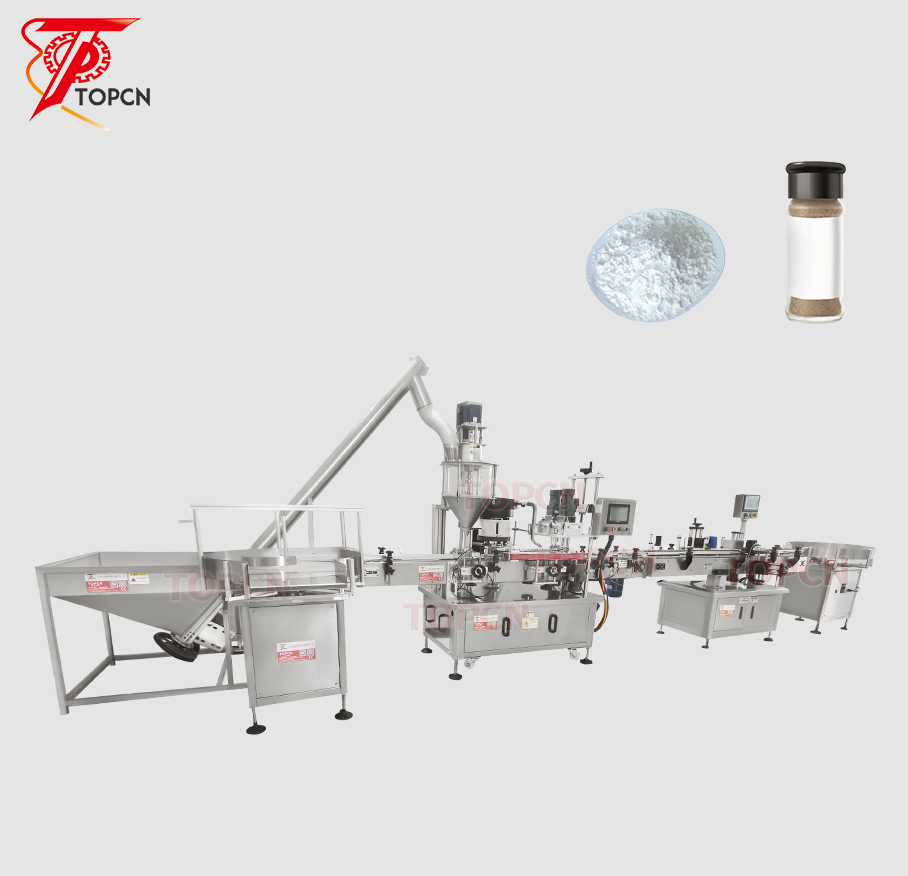

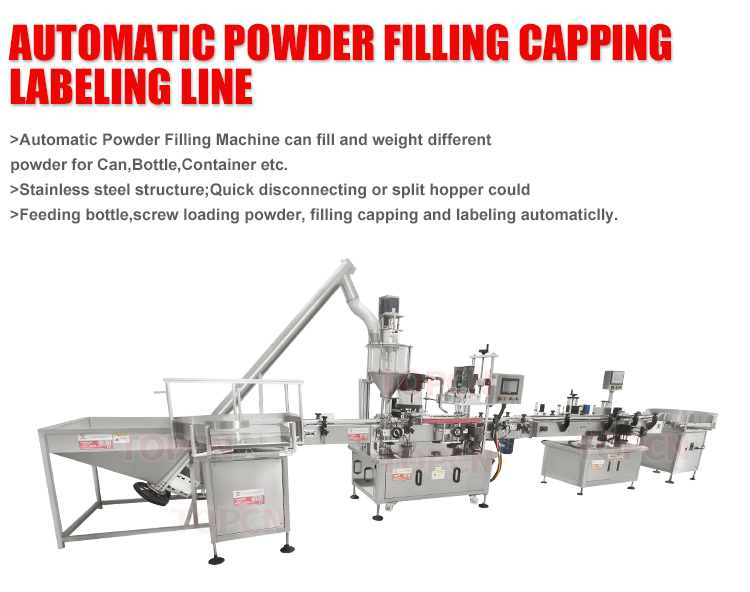

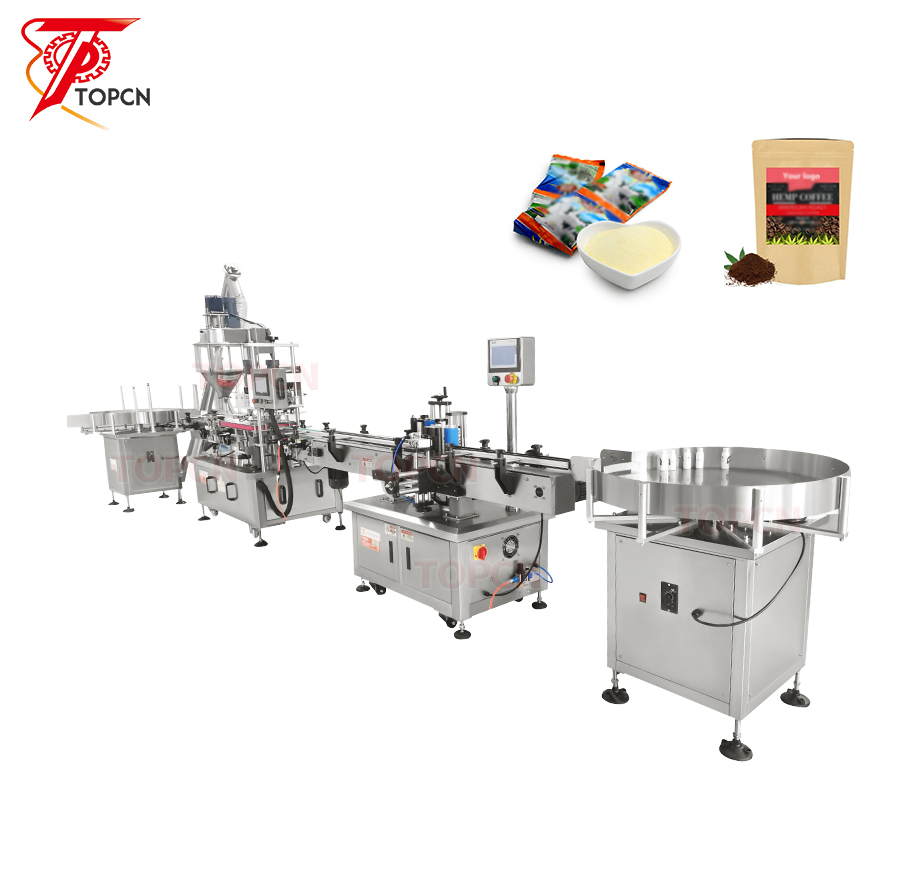

Application: Automatic screw powder filling machine
Screw type weighing filling machine is Suitable for dry powder, coffee powder, veterinary drugs, powder granular additives, sugar, glucose, monosodium glutamate, solid drinks, solid medicine, carbon powder, powder, pesticides, dyes, flavors, etc.
Please send us your request, we can help you customize a suitable machine!
Specification

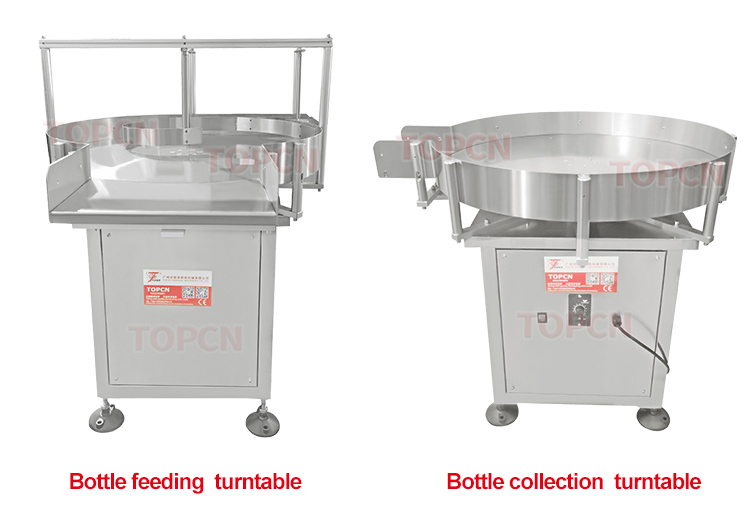

Bottle feeding turntable Specifications
| Parameter |
TP-LP800 |
TP-LP1000 |
TP-LP-1200 |
| Turntable Diameter |
800mm |
1000mm |
1200mm |
| Suitable Bottle Diameter |
20-100mm |
| Suitable Bottle Height |
30-120mm |
| Working Speed |
40-60 bottles/min (depends on bottle size) |
| Motor Power |
0.2KW |
| Power Supply |
220V/50-60HZ |
| Net Weight |
109.5kg |
135kg |
165kg |
| Machine Size |
95*100*110cm |
115*120*110cm |
135*130*110cm |
| Package Size |
115*100*132cm |
135*131.5*132cm |
155*150*132cm |
| Gross Weight |
155kg |
180kg |
200kg |
Bottle collection turntable Specifications
| Parameter |
TP-SP800 |
TP-SP1000 |
TP-SP-1200 |
| Turntable Diameter |
800mm |
1000mm |
1200mm |
| Suitable Bottle Diameter |
20-100mm |
| Suitable Bottle Height |
30-120mm |
| Working Speed |
40-60 bottles/min (depends on bottle size) |
| Motor Power |
0.2KW |
| Power Supply |
220V/50-60HZ |
| Net Weight |
109.5kg |
135kg |
165kg |
| Machine Size |
90*90*110cm |
115*115*110cm |
130*130*110cm |
| Package Size |
110*110*130cm |
125*125*130cm |
140*140*130cm |
| Gross Weight |
95kg |
120kg |
135kg |

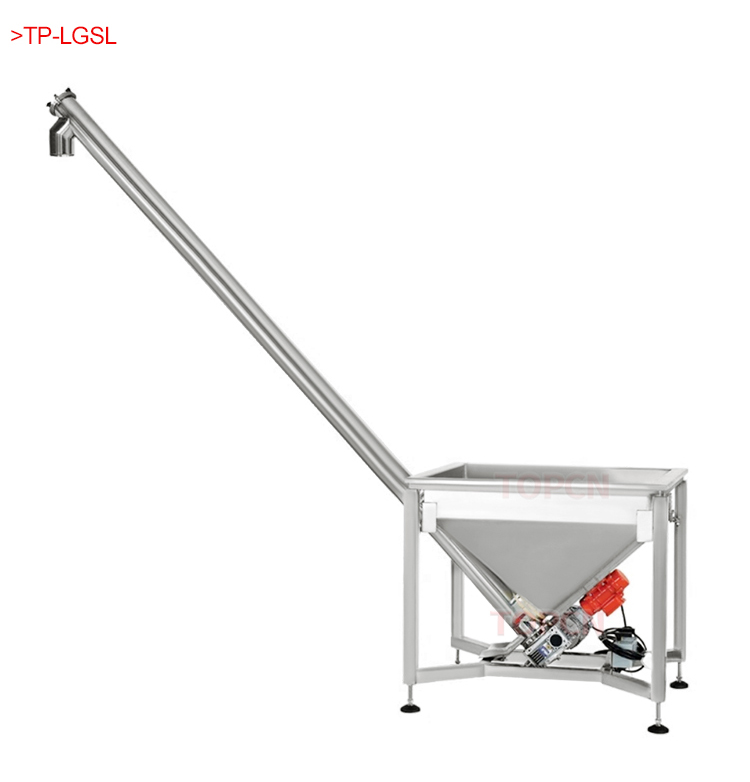

Model: TP-LGSL Specifications
| Model |
TP-LGSL |
| To Enhance the Volume |
2M3/hour |
| Hopper Volume |
100L |
| Feeding Diameter |
Φ102 |
| Lifting Height (Standard) |
2M |
| Power |
380V 2.2KW |
| The Whole Weight |
130KG |
| Dimensions |
L800×W800×L2300mm |
| Enhance the Angle |
45° (customizable 30°~60°) |

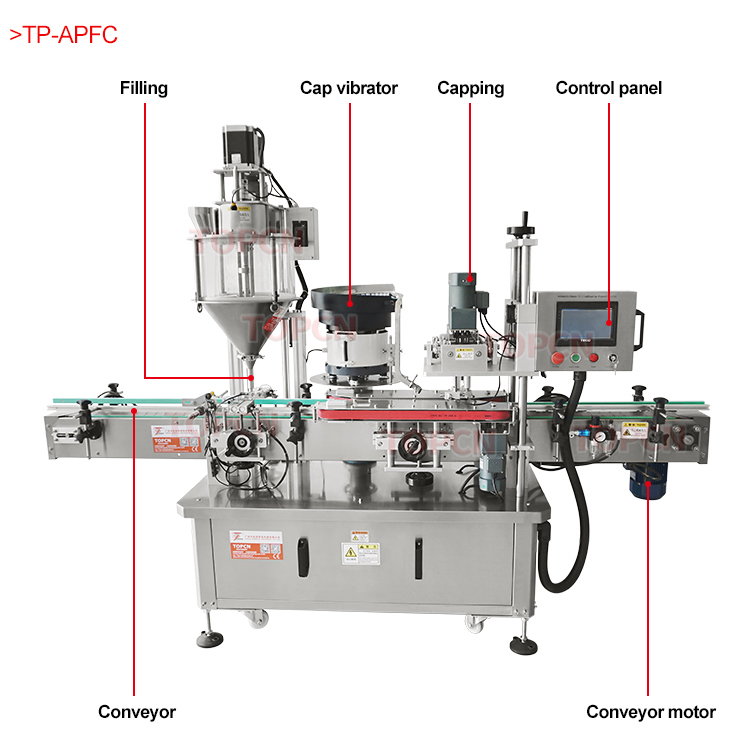

Model: TP-APFC Specifications
| Model |
TP-APFC |
| Metering Mode |
Screw rotation filling traced by weighing feedback |
| Packaging Weight |
10-3000g (screw attachment changeable) |
| Weighing Range |
1-5000g (Resolution 1g) |
| Packaging Accuracy (≤100g) |
≤100g with an error ≤±0.5-1g |
| Packaging Accuracy (100-1000g) |
100-1000g with an error ≤±0.5%-1% |
| Packaging Accuracy (>1000g) |
>1000g with an error ≤±0.25%-0.5% |
| Packaging Rate |
10-50 bottles/min |
| Power Supply |
Single phase 220V 50-60Hz / or Three-phase 380V |
| Total Power |
1.8KW |
| Operational Style |
PLC control system, 5.7 inch colorful touch screen |
| Weight |
550kg |
| Dimensions |
3000*900*2060mm |
| Hopper Volume |
50L |

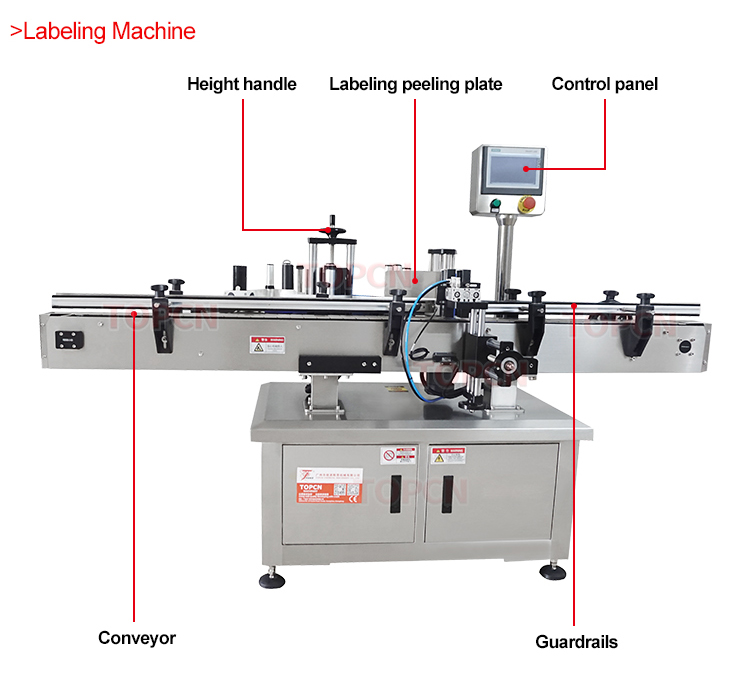

Model: TPLM-R Labeling Machine Specifications
| Model |
TPLM-R Labeling Machine |
| Power Supply |
AC220V 50Hz/60Hz 1000W |
| Labeling Capacity |
25-50 bottles/min (depends on bottle size) |
| Labeling Accuracy |
±1.0mm |
| Suitable Bottle Diameter |
Φ12-100mm |
| Label Size |
(L)20-300mm (H)15-130mm |
| Roll Inside Diameter |
Φ76mm |
| Roll Outside Diameter |
Φ350mm |
| Conveyor Size |
112*2000mm(W) |
| Machine Size |
About (L)2000*(W)820*(H)1380(mm) |
| Machine Weight |
About 180kg |
| Packing Size |
About (L)2100*(W)890*(H)1520(mm) |
| Package Weight |
About 250kg |
Product Features

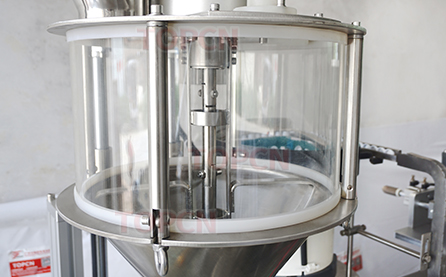

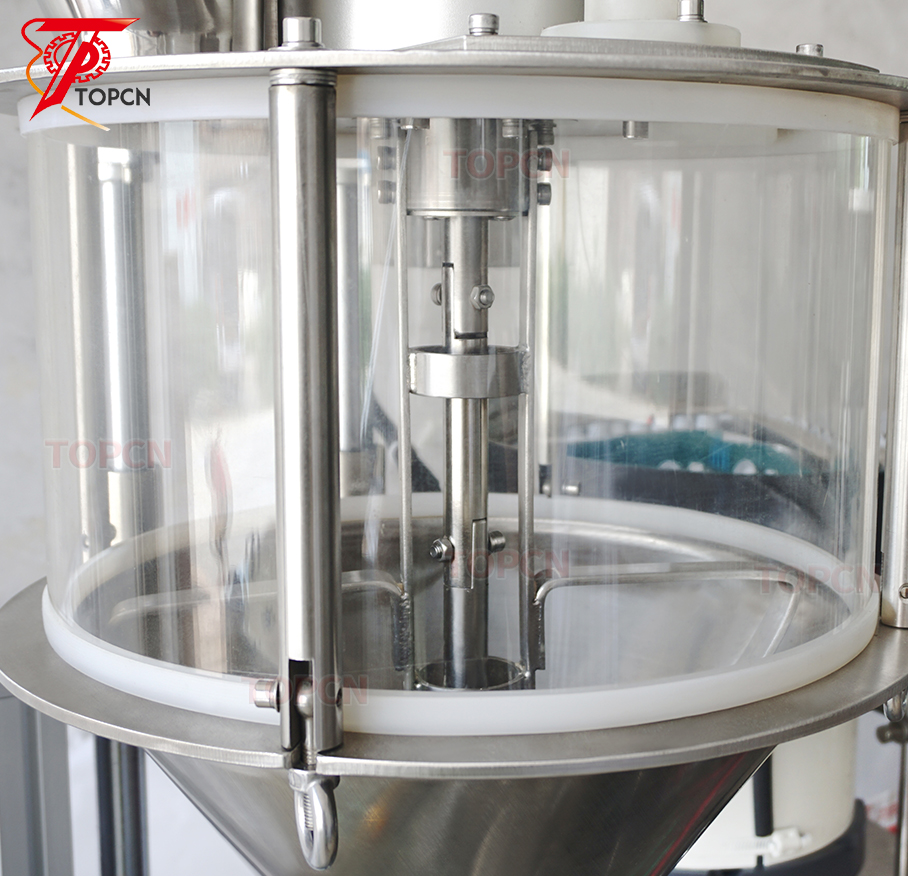

Quick disconnecting or split hopper
The entire seal air damping glass and stainless steel hopper provides clear visual of the material. Operates with no dust releasing, featuring a dust exhaust apparatus at the mouth of filling to keep the workshop clean.

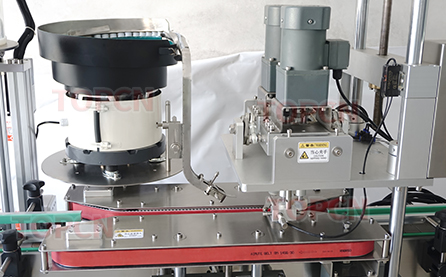

Capping system
Cap vibrator automatically feeds the caps onto the bottles and caps them. This system saves labor costs and significantly improves production speed.

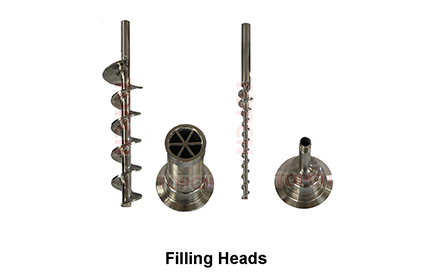

Screw Rod Filling Nozzle
Different sizes and specifications of filling nozzles are available to accommodate various filling volumes.
We have other machines available. If you are interested in our products, please send us your request. We can help you customize a suitable machine.
Related Products

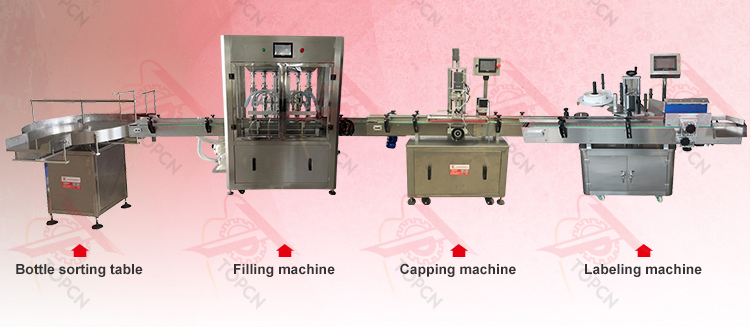

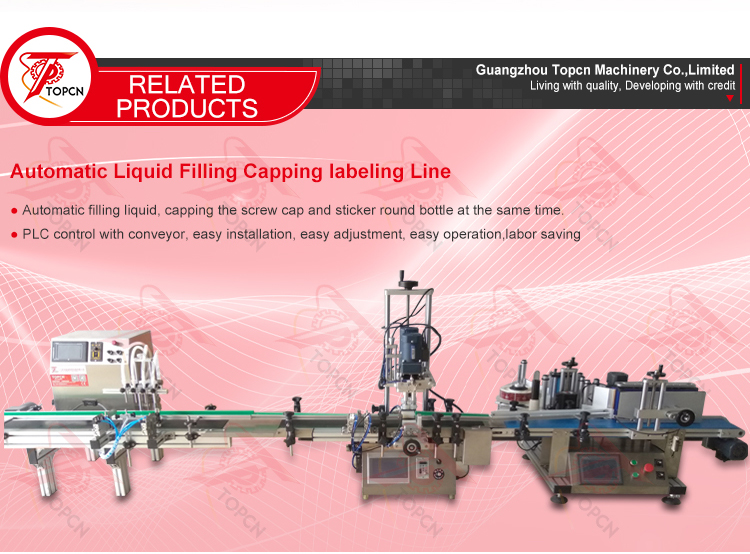

Full Automatic Production Line
